HB-8228

Truck/Rail Scale Controller Analog/Digital Weighing Data Management System

HB-8228A is designed for the needs of digital or analog, truck and rail track scale in the industry. It combined together with following multi-functions: weighing indicator, computer data management, internet interface, external remote display, weight setting control etc. It saves users space, supplies two-printer output interfaces. HB-8228 can print out weighing value, statistic report and other details at the same time.HB-8228A shows hint areas, users does not need to memory all the operation process, it is easy and friendly for any user.

HB-8228B can connect to any brands and types indicator as the data management controller.

Operation and Performance Features:

1/60000 Display resolution internal resolution of 1/16000000, up to 16pcs digital load cell can be connected.
Humanize disign: Easy, simple operation. The HB-8228A/B is designed with complete system operations from one simple key.
The HB-8228A/B is designed with interactive indication where operator is asked for required data and error messages indication.
System can be inspected, amended or clear all of in memory data on line.
Two (2) centronic type (parallel 8bits, TTL-LEVER), printer port. Easy to interface impact dot matrix ticket printer and roll tape printer.
Memory holds up to 5000 completed weighing data.
500 Tare weights can be preseted and memory by I.D. number.
500 Weight ID(Truck No.) can be memory temporarily
EMI/RFI protection for use in electrically noisy environments.
Both of RS-232 and RS-485 communication serial interface available.
Ethernet (TCP/IP) internet interface
Weighing data consist of :Data: 6 digitals, I/O bound, time:6 digitals, ID No. (Truck No.):10 digits, Material code:8 digits, Customer code:8 digits, Serial No.:3 digits. Weigh: 6 digits (G-T-N)

Full Digital Function Specifications

Digital Transmission-HB-8228A/B can be composed with those digital products as below.
HB-DLC: HB-Digital Load Cell
HB-SDJB-4P: 4-channel Smat Digital Junction Box(can be connected 1 to 4 LCs)
HB-SDJB-8P: 8-channel Smat Digital Junction Box(can be connected 5 to 8 LCs)
Whether new or former weighing systems, using HB-8228A/B series products can help you meet full digital wighing system demand with less cost.
Analog Load Cell: It can be connected any brand, any type analog load cell.
Stable Performance- the weight value signal transform to digital signal in the wigher sid then convey to the HB-8228A/B, it is different from traditional weighing sytem trans messages via weak analog signal therefore HB-8228A/B enhances the ability of anti-interface and transmission distance, the weighing system becomes more stable.
Convenient Calibration- Each LC of the multi-LCs weighing system does digital transmittion itself. It is different from traditional weighing system's LCs parallel connection and decreases the difficulty in calibration substantially.
Easy Repair-Each LC's load point has its own weight value indication in the multi-LCs weighing system; therefore the user can differentiate the weighing system's deviation or LCs' bug. It is convenient to maintenance and repair.
Multi-Matching- The Smart Digital Junction Box can be connected with any brand, kinds of Analog Load Cell then upgrade the traditional Analog weighing system to Digital weighing system directly.
Data Collection- The HB-8228A/B is provided with DATA Logger design, the DATA Logger design can analyze and online detect by collecting each Digital LC's data.
Smart Detection- The HB-8228A/B can judge the in/out bound Truck belongs usual freigt-truck, aqua-truck while weighing, to start the related software to make the user can receive stable and accurate weight value quickly and effectively.

Technical Specification:

HB-8228
Display Specifications
Display	256X64 dot matrix backlight LCD Module
Weight Indication	6 digits 11mm or 23.5mm Height
Message Indication	6 digits X 4 line. 5X7 dots digit display
Zero Indication	▽ZERO Center of Zero (0±0.25D)
Tare Indication	▽TARE Tare Weight Mode
Stable Indication	▽STAB Weigher is stable
Gross Indication	▽GROSS Gross Weight Mode
Net Indication	▽NET Net Weight Mode
Setting Indication	▽FUNC F-Function Setting Mode
Display Resolution	300~60,000
Analog Load Cell Input
Min. Sensitivity	0.3μ v/division
Zero adjust range	0.1~25mV
Load cell excitation	DC10V±5%, 240mA
Drive capability	total 120mA for up to 8(350Ω) LOAD CELL
Interface Specifications
CAN BUS Interface	Standard 2 Ports. CAN Port 1 & 2
PS2 KB	The HB-8228A/B can be connected with PS2 KB for Operation
One(1) Centronics Parallel Interface for printer is built in standard
RS-485 Serial Interface (OP-01)
TCP/IP Ethernet Internet interface (OP-02)
DIO Interface:(Standard 1 Port, DIO Port 1)& (OP-03, DIO Port 2) External Input Signals 　　　4 points of DI, Contact input or open-collector input isolated with photocouplers External Output Signals　　4 points of DO, open-collector output isolated with photocouplers
Control Mode: Mode 0: User Defined I/O Mode 　Mode 1:Hopper Charge Mode Mode 2:Hopper Discharge Mode 　　　Mode3:Truck Scale I/O Mode
Analog Input Interface
RS-232 Interface: (Serial Port1 built in standard)

HB-Smart Digital Multi-Channel A/D Conversion Unit (HB-SDJB)

Model	HB-SDJB4/8 (AC)	HB-SDJB4/8 (DC)
A/D Channel	4 or 8 independent A/D Channel (24 bits delta sigma A/D)	4 or 8 independent A/D Channel (24 bits delta sigma A/D)
Conversion Rate	128 samples/second
Internal Resolution	16,000,000 divisions
Signal Sensitivity	0.1u V/graduation (min)
Signal Range	0.5mV/V to 3mV/V
Load Cell Excitation	5±0.25VDC
Drive Capability	120mA for up to 8 (350Ω) load cell
Power Supply	100~240±10VAC X50/60Hz Switching Power	DC 20V~30V, 5w
Max. Transmission Distance	Unlimited	Max Transmission Distance 200m,(AWG 22) *Connect 2 AWG22 line can achieve 370m

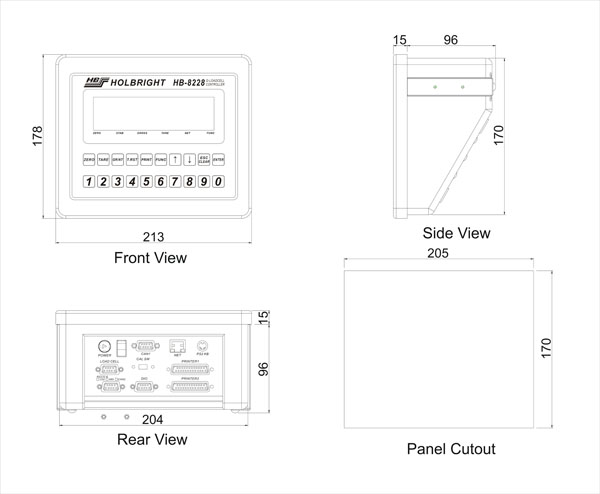

Physical Dimensions Outline:
