HB-888 SERIES

CONTINUOUS WEIGH FEEDER SYSTEMS

FOR THE AUTOMATION OF POWDER AND BULK SOLIDS

The model HB-888 weigh feeders are designed for continuous of a weigh feeding system. Which will control and monitor the flow rate of bulk materials, such as minerals, chemicals, grains, plastic powders or a variety of other bulk materials. The HB-888 will handle them reliably, in harsh application environments, feeding accurately from 1kg/hr to 50,000kg/hr and more.

Standard Features:

• Totally enclosed stainless steel construction.
• Easy access and disassembly.
• Cantilevered frame design allows the conveyor module or belt to be completely removed in minutes without the need for tools.
• Enclosed no maintenance cog belt direct drive AC gear motor. A no maintenance cog belt drive ensures reliable and accurate conveyor movement without need for lubrication or adjustment.
• Automatic Belt Tensioner insures a constant belt tension at all times, even under changing loads or temperature.
• Sealed bearings for long life and maintenance free.
• Quick removal side guards.
• Belt tracking run-off limit switches.
• Sealed junction box.
• High quality finish, the surface finish is equal to 2 B.
• Enclosed belt speed sensor.
• 2 blade scrapers 304 SS material at belt discharge, return side belt and tail pulley.
• The weight feeders can be suspended or floor mounted.
• All weight feeders have a shock mounts design.
• Manually adjusted 304 SS material shear gate.
• 304 SS material feed cut-off gate.

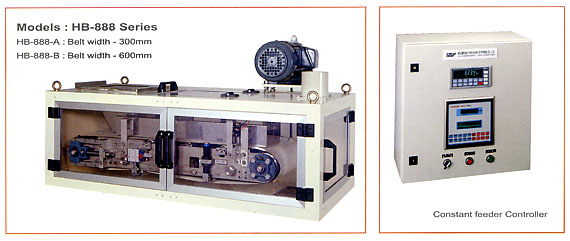

The HB-888 Wide Range Belt Weighing Feeder

DIMENSIONS IN INCHES (AND MILLIMETERS); FEED RATE IN POUNDS PER MINUTE (AND KILOGRAMSPER MINUTE)

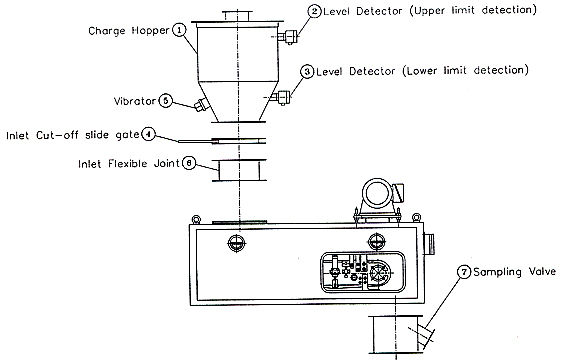

Physical Dimension
