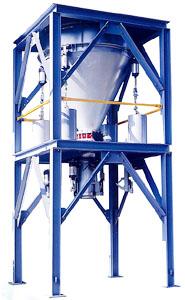

 HB-500/1000CB
CONTAINER BAG PACKING MACHINE
 The HB500/1000CB full load cell net bagging weigher is designed for applying to container bag packing. In every industrial environment for whatever materials are being handled such as PVC, PTA powder, PS, PET CHIPS... Etc.
A comprehensive range of matched material feeders specifically developed by Holbright, ensure the HB-500/1000CB high speed, high accuracy and versatility benefits are maintained.
Standard Features:
- All contact parts are made by SUS304 material.
- With 2 step feeding control/Full automatic free falling compensation.
- Auto clip bag design.
- Auto release hanging belt design.
- Breaking bridging device
- Auto blowing air into container bag design.
- Auto discharge air from container bag design.
- Auto test weight for calibration.
- Explosion proof design is available (optional).
Technical Specification:
| MODEL |
HB-500CB |
HB-1000CB |
| Type |
Batch Type |
Batch Type |
| Weighing Range |
0-500 KG |
0-1000 KG |
| Weighing Accuracy |
±0.5KG OF F.S. |
±1KG OF F.S. |
| Weighing Speed |
2~3 min./bag |
2~3 min./bag |
| Material (contact parts) |
SUS 304 |
SUS 304 |
| Breaking Bridging Device |
Air Vibrator |
Air Vibrator |
| Load cell |
500 KG/PC x 3 PCS |
1000KG/PC x 3 PCS |
| Air Source Supply |
5~7 KG/cm2 |
5~7KG/cm2 |
| Power Requirement |
110V/220VACx60HZx3 |
110V/220VACx60HZx3 |
| Test WT. for Auto Calibration |
OPTIONAL |
OPTIONAL |
| Slat Conveyor |
OPTIONAL |
OPTIONAL |
|
